Post subject: Murci-Me ongoing build diary!  PostPosted: Oct 02, 2011 - 07:34 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
Here we go!


_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 02, 2011 - 07:41 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
Heres a video of my paddle shif system. Its easy to make, and works great with ANY automatic transmission.
http://www.youtube.com/watch?v=gQgwH2viEVA

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 02, 2011 - 07:49 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
These are my new door cards I made for my build.
http://www.youtube.com/watch?v=sV2DpzqQzqI

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
JB1Offline
Post subject:   PostPosted: Oct 02, 2011 - 08:31 PM
New Member


Joined: Oct 02, 2011
Posts: 3

Status: Offline
I am very interested in info on computer and actuator used on paddle shift..

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 02, 2011 - 08:44 PM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline

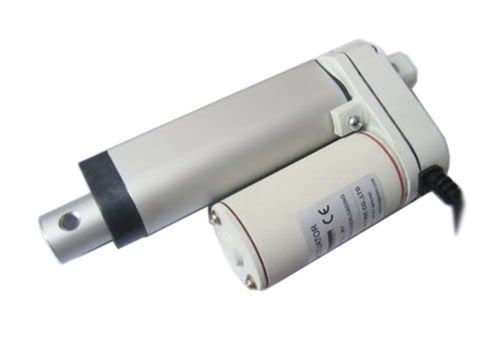

The linear actuator I used I purchased on Ebay for $160. Its a 4" 12v actuator, and moves at 25mm/sec, with a force of 240lbs. There are cheaper ones available, but they are not as strong, and not rated to withstand the enviorment of an engine compartment (heat, moisture, vibrations). Its controlled by a feedback slide mounted above it, to tell the actuator where and when to stop. This information is fed to a circuit board which controls the actuator, and the circuit board is controlled by the paddles on the steering column. Its a vey simple, reliable system. I hve had it in my car for a few years now, and have never had a problem with it. I had to make the dot matrix display in the instrument cluster with LED"S, I couldnt find one the right size. I made a simple decoder box with diodes to control the display, and it gets a signal from the feedback slide to tell it what to display.

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 03, 2011 - 12:42 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
My car with the front bumper cut off, getting it ready to mount the OEM bumper on

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
tallonOffline
Post subject:   PostPosted: Oct 03, 2011 - 01:57 AM
Senior Member


Joined: Feb 14, 2010
Posts: 126
Location: Savannah, Georgia, USA
Status: Offline
Oem bumper matches up? Or do you mean modded g28? I've wanted to do this with the LP670 bumper and to eventually turn it into that. Love the sv look.

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 03, 2011 - 07:58 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
Yes, the OEM bumper fits, but you have to slightly modify the fenders to accept. Its not a big change, just within the last half inch of where the fender meets the bumper. That is why the car is masked off. After I prefit the bumper and made the change to the fenders, I had to re-spray the fenders again. The gray area on the bottom edge of the fender is the area that had to be changed. I first made a mould of the OEM bumper, then ran a fiberglass replica out out it. I had to give the original bumper back Sad

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
naoufelOffline
Post subject:   PostPosted: Oct 04, 2011 - 04:42 AM
Junior Member


Joined: Nov 01, 2010
Posts: 6

Status: Offline
Do you still have the mold? Are you selling or planning on selling bumpers?

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 06, 2011 - 01:15 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
I have never made any mould for the reason of selling parts. I had to give the bumper back, thats why I made a mould of it, so I could have something to make replacement bumpers from. I could make a bumper to sell if somebody needs one for their build.

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 06, 2011 - 01:51 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
Heres a pic of the controller board and the feedback slide for the paddle shift system



_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
EvolutionsTattooOffline
Post subject:   PostPosted: Oct 06, 2011 - 05:01 AM
Member


Joined: Feb 12, 2006
Posts: 54
Location: L.A
Status: Offline
your car is totally awesome!, is there anyway you can shed some light on the doors and window setup please,thanks

_________________
Grow your business!

 View user's profile Send private message
Reply with quote Back to top
chase1Offline
Post subject:   PostPosted: Oct 06, 2011 - 05:46 AM
Member


Joined: Sep 14, 2007
Posts: 78

Status: Offline
Hey Evolutions! I remember you from MadMechanics Smile What do you need to know about the doors and windows? Assembly? What kit are you building

_________________
a.k.a. Murci-Me

 View user's profile Send private message
Reply with quote Back to top
EvolutionsTattooOffline
Post subject:   PostPosted: Oct 06, 2011 - 04:35 PM
Member


Joined: Feb 12, 2006
Posts: 54
Location: L.A
Status: Offline
Thanks for the quick response, the inner workings of the doors, the locks,framing,and window setup, Im using Inland exotics coupe body. Thanks

_________________
Grow your business!

 View user's profile Send private message
Reply with quote Back to top
drattsOffline
Post subject:   PostPosted: Oct 06, 2011 - 05:14 PM
New Member


Joined: Oct 06, 2011
Posts: 4

Status: Offline
chase1 wrote:
Heres a pic of the controller board and the feedback slide for the paddle shift system


Do you still have a clutch pedal in your paddle shift setup? Do you have to use the clutch pedal? (if there is one)

 View user's profile Send private message
Reply with quote Back to top
