Post new topic   Reply to topic
View previous topic Printable version Log in to check your private messages View next topic
Author Message
andpgudOffline
Post subject:   PostPosted: Mar 20, 2012 - 05:15 PM
Member


Joined: Nov 30, 2011
Posts: 33

Status: Offline
Has anyone tryed to adapt some m50 heads to the m70?
Why did they make the heads so crappy on the m70?

 View user's profile Send private message
Reply with quote Back to top
AdrianBurtonOffline
Post subject:   PostPosted: Mar 20, 2012 - 10:12 PM
KitCentral Fellow


Joined: Jul 22, 2003
Posts: 1749
Location: Mooresville, NC
Status: Offline
andpgud wrote:
Has anyone tryed to adapt some m50 heads to the m70?
Why did they make the heads so crappy on the m70?


Have a look thru the 12 forum, there have been many conversations about heads and how the only real option if FI unless you know of someone that can make a set for us Very Happy

_________________
Now building in Mooresville NC
http://www.flickr.com/photos/adrianburton
http://profile.imageshack.us/user/AdrianBurton
http://s997.photobucket.com/albums/af91/AdrianBurton/

 View user's profile Send private message Send e-mail Visit poster's website
Reply with quote Back to top
andpgudOffline
Post subject:   PostPosted: Mar 21, 2012 - 05:13 PM
Member


Joined: Nov 30, 2011
Posts: 33

Status: Offline
So my only option here would be a supercharger. Nothing else I can do to the motor?
Lets say I get the supercharger kit. Something else I could do beside that?

 View user's profile Send private message
Reply with quote Back to top
AdrianBurtonOffline
Post subject:   PostPosted: Mar 21, 2012 - 06:40 PM
KitCentral Fellow


Joined: Jul 22, 2003
Posts: 1749
Location: Mooresville, NC
Status: Offline
racingpowerplant.com

That isnt your "ONLY" option, but the most cost effective

_________________
Now building in Mooresville NC
http://www.flickr.com/photos/adrianburton
http://profile.imageshack.us/user/AdrianBurton
http://s997.photobucket.com/albums/af91/AdrianBurton/

 View user's profile Send private message Send e-mail Visit poster's website
Reply with quote Back to top
wire2Offline
Post subject:   PostPosted: Jun 27, 2012 - 02:58 AM
KitCentral Fellow


Joined: Feb 15, 2005
Posts: 307
Location: Milton, ON, Canada
Status: Offline
flyhilandsoft wrote:
It takes horsepower to make more horsepower. If you are lacking in the horsepower range than it wouldnt be benificial. Superchargers are belt driven unlike a turbo which is driven by the exhaust. Here take a look at this......

http://www.youtube.com/watch?v=_vaw5zwnhrA&feature=related

Just to be clear; a turbo is also a parasitic load on the engine. All the exhaust passages are chanelled into a single rather small opening of the turbo flange. Then the exhaust gasses have to push past an impeller to get out. It takes energy from the crankshaft to push the piston up on the exhaust stroke to do all this. There's no free lunch.
But while the turbo may cost ~30 hp loss due to exhaust restriction, it will gain ~150 hp with a denser air/fuel intake charge, so you're up 120 hp.

 View user's profile Send private message Visit poster's website
Reply with quote Back to top
andpgudOffline
Post subject:   PostPosted: Aug 01, 2012 - 06:55 PM
Member


Joined: Nov 30, 2011
Posts: 33

Status: Offline
The s70 is ready!!


 View user's profile Send private message
Reply with quote Back to top
AdrianBurtonOffline
Post subject:   PostPosted: Aug 02, 2012 - 04:00 PM
KitCentral Fellow


Joined: Jul 22, 2003
Posts: 1749
Location: Mooresville, NC
Status: Offline
DETAILS!!!!!

_________________
Now building in Mooresville NC
http://www.flickr.com/photos/adrianburton
http://profile.imageshack.us/user/AdrianBurton
http://s997.photobucket.com/albums/af91/AdrianBurton/

 View user's profile Send private message Send e-mail Visit poster's website
Reply with quote Back to top
andpgudOffline
Post subject:   PostPosted: Aug 05, 2012 - 02:19 PM
Member


Joined: Nov 30, 2011
Posts: 33

Status: Offline
AdrianBurton wrote:
DETAILS!!!!!


As for now it is just a stock S70 that I am putting into my e31. It has Magnecor cables and other than that it is stock. I would like to get more out of it. What would I gain with a dry sump?

 View user's profile Send private message
Reply with quote Back to top
Richard454Offline
Post subject:   PostPosted: Aug 06, 2012 - 04:07 AM
Member


Joined: Mar 06, 2010
Posts: 36
Location: Atlanta, GA
Status: Offline
With the S70- the higher compression -is going to limit the boost you can run-turboing or supercharging...

I've decided to run the M73- w/ M70 parts on it and add ITB's...I'm not expecting much more power- just trying to add to the 'coolness' factor.

I have decided ater a heck of a lot of research to get noticable more power out of these engines is JUST not cost effective.

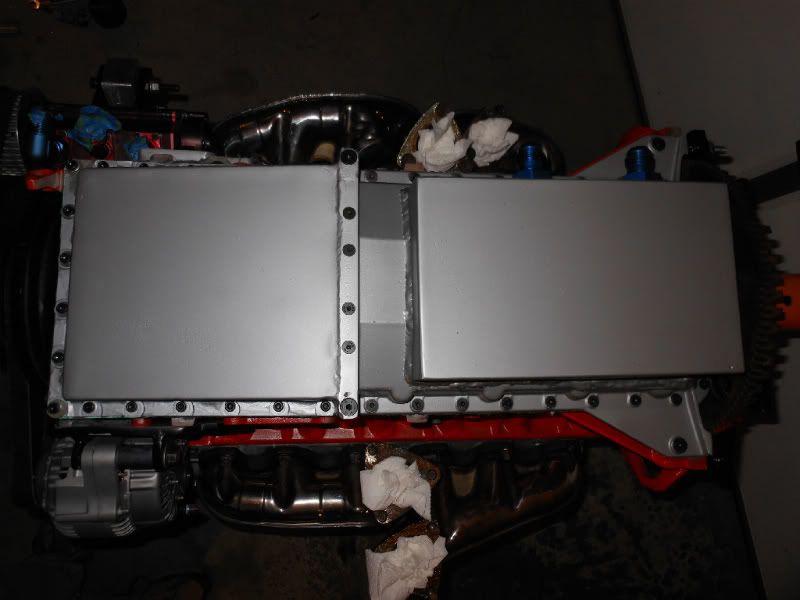

A dry sump- for the street- is really not needed-unless you are seeing some "track" days and need the extra protection from loosing oil pressure while cornering.

I'm runnig a dry sump because I HAD to- for clearance issues.

Theoretically you'll see 5-10% more HP because the external pump is pulling a vacuum - creating a better sealing of the piston rings.

Richard










 View user's profile Send private message
Reply with quote Back to top
Richard454Offline
Post subject:   PostPosted: Aug 06, 2012 - 04:08 AM
Member


Joined: Mar 06, 2010
Posts: 36
Location: Atlanta, GA
Status: Offline
Double post????

 View user's profile Send private message
Reply with quote Back to top
jdinnerOffline
Post subject:   PostPosted: Aug 06, 2012 - 12:25 PM
KitCentral Fellow


Joined: Nov 10, 2003
Posts: 3075
Location: Toronto, Ontario, Canada
Status: Offline
Very pretty Richard.
What are you using to run the EFI and ignition?

_________________
Visit http://jimdinner.wordpress.com/

 View user's profile Send private message Send e-mail Visit poster's website
Reply with quote Back to top
AdrianBurtonOffline
Post subject:   PostPosted: Aug 06, 2012 - 10:47 PM
KitCentral Fellow


Joined: Jul 22, 2003
Posts: 1749
Location: Mooresville, NC
Status: Offline
R454

That engine looks NICE, details on the intake....

_________________
Now building in Mooresville NC
http://www.flickr.com/photos/adrianburton
http://profile.imageshack.us/user/AdrianBurton
http://s997.photobucket.com/albums/af91/AdrianBurton/

 View user's profile Send private message Send e-mail Visit poster's website
Reply with quote Back to top
Richard454Offline
Post subject:   PostPosted: Aug 07, 2012 - 03:57 AM
Member


Joined: Mar 06, 2010
Posts: 36
Location: Atlanta, GA
Status: Offline
I'm looking at the Megasquirt-the guys at DIYAUTOTUNE are local to me-not buying the kit- but an assembled unit

MS330-K $378 Megasquirt-III kit with V3.0 PCB
MS3Xpander $90 MS3X expansion card
JimStim-K $59 JimStim Stimulator kit
StimPower $9.50 Power supply for JimStim
MSHarness8 $67 8' main board wiring harness
MS3X-Hrn8 $72 8' MS3X wiring harness
IATwPiggy $22.25 Intake Air Temperature Sensor

Ignition- looking at the LSx truck coil near plug-

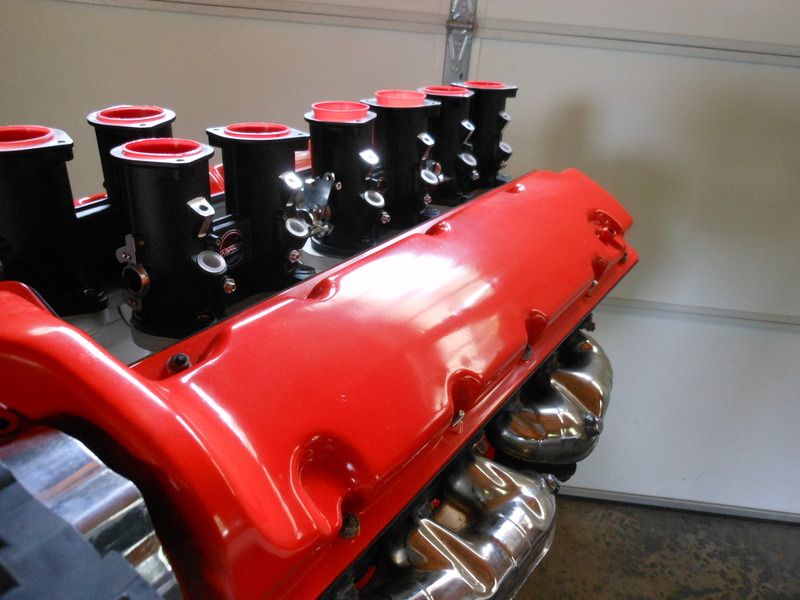

Adrian- I messed w/ several designs.... I originally looked at doing downdrafts-was thinking of going w/ Weber carbs..

I bought some Weber DCOE waterjet ½ aluminum plates on eBay- then simply cut down a stock manifold w/ a sawzall...Test fitted it- then took the tubes I cut off to my buddy's machine shop and milled them down. Simply tack welded the plates-done!!! I'm going to use the original injector holes for vacuum ports.

Believe it or not- the Weber carb uses 90mm center to center- and the M70/73 are exactly the same!!! It was really easy as it turned out. The throttle linkage on the ITB's fits together- I just have a left side and a right side lever to control all 12. I can even use the STOCK fuel rails.

Here's the downdraft mock up-


Richard

 View user's profile Send private message
Reply with quote Back to top
andpgudOffline
Post subject:   PostPosted: Aug 07, 2012 - 03:55 PM
Member


Joined: Nov 30, 2011
Posts: 33

Status: Offline
Richard454 wrote:
I'm looking at the Megasquirt-the guys at DIYAUTOTUNE are local to me-not buying the kit- but an assembled unit

MS330-K $378 Megasquirt-III kit with V3.0 PCB
MS3Xpander $90 MS3X expansion card
JimStim-K $59 JimStim Stimulator kit
StimPower $9.50 Power supply for JimStim
MSHarness8 $67 8' main board wiring harness
MS3X-Hrn8 $72 8' MS3X wiring harness
IATwPiggy $22.25 Intake Air Temperature Sensor

Ignition- looking at the LSx truck coil near plug-

Adrian- I messed w/ several designs.... I originally looked at doing downdrafts-was thinking of going w/ Weber carbs..

I bought some Weber DCOE waterjet ½ aluminum plates on eBay- then simply cut down a stock manifold w/ a sawzall...Test fitted it- then took the tubes I cut off to my buddy's machine shop and milled them down. Simply tack welded the plates-done!!! I'm going to use the original injector holes for vacuum ports.

Believe it or not- the Weber carb uses 90mm center to center- and the M70/73 are exactly the same!!! It was really easy as it turned out. The throttle linkage on the ITB's fits together- I just have a left side and a right side lever to control all 12. I can even use the STOCK fuel rails.

Here's the downdraft mock up-


Richard


Is that how much it costed you with the ITB?
How much is is spitting regarding power?

 View user's profile Send private message
Reply with quote Back to top
Richard454Offline
Post subject:   PostPosted: Aug 09, 2012 - 02:39 PM
Member


Joined: Mar 06, 2010
Posts: 36
Location: Atlanta, GA
Status: Offline
The Throttle bodies- I got from Jenvey in the UK. It was a little over $2K US for the 6 twin throttle bodies and interconnecting linkage. I'm using the stock manifold -just cost me a couple of pizzas to cut it down at my friends machine shop(bought them lunch!) I still have to have them welded up- they were just tack welded to test fit.

As far as power- stock the M73 was 326HP -w/ cats ad all the ancilary stuff (PS & AC). I'm just running an Alt and no cats w/ sidepipe exhaust- I did clean up the exhaust manifolds a bit- but everything else is stock. I'd guess around 375?

Like I said before- w/o serious money- the enigine is pretty tweaked stock-limited to head flow- there is no somple way to add more than a few HP.

I'm thinking 375HP in a 3000lb car- with the sounds the V12 emits -is all I'll need.
Richard

 View user's profile Send private message
Reply with quote Back to top
